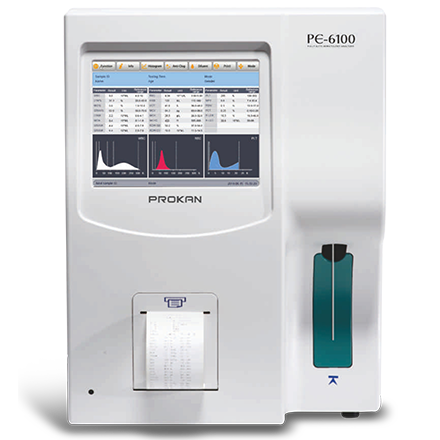

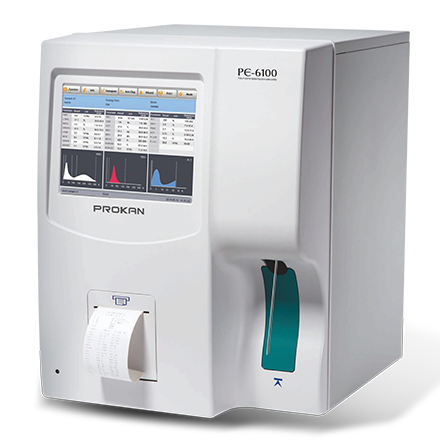

PE-6100 - PROKAN

3-Part Fully Auto Hematology Analyzer

PE-6100

Advanced Technology

Specifications

Principle

Electrical resistance for counting, cyanide free method for hemoglobin
Parameters

3-part differential of WBC; 20 parameters (WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR) + 3 color histograms (WBC/RBC/PLT)
Sample Consumption

Venous mode: 9.6μL, Capillary mode: 9.6μL, Pre-diluted mode: 20μL
Working Mode

Double passages counting detection+independent HGB measurement system; 24 hours with auto standby
Operation Mode

USB keyboard & mouse (PE-6000Plus: Touch screen)
Throughput

≥60 samples/hour
Storage

50,000 sample results inclusive of the histograms
QC Mode

L-J QC mode
Cross Contamination Ratio

WBC/RBC/HGB﹤0.5%, PLT﹤1%
Performance

Parameter Repeatability (CV%) Linear Range

WBC≤2.5% 0.00-99.9×10^9/L

RBC≤2.0% 0.00-99.9×10^12/L

HGB≤1.5% 0-300g/L

MCV≤0.4% 40-150fL

PLT≤5.0%0-999×10^9/L
Display

8.4”LCD, resolution: 800×600
Reference Value

Baby, Kid, Woman, Man, Normal and Customization
Interface

4×USB, 1×ethernet, 1×VGA (for external monitor)
Printer

Built-in thermal recorder, optional external printer, eight report formats
Environment Requirement

Temperature: 15℃~35℃; Humidity: 10%-90%
