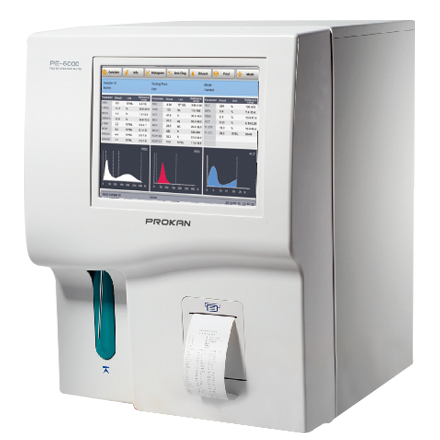

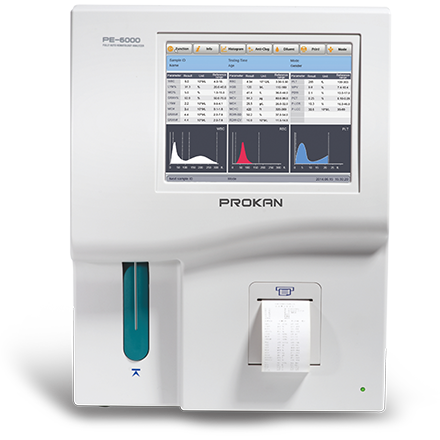

PE-6000
3-Part Fully Auto Hematology Analyzer
PE-6000
  • Automated & User-friendly Interface
  • Accurate Results & Low Sample Consumption
  • Easy Maintenance & Environment-friendly System
  • Perfect QC System
  • 20

    Parameters

  • 3

    Histograms

Advanced Technology
Specifications
  • Principle

    Electrical resistance for counting, cyanide free method for hemoglobin

  • Parameters

    3-part differential of WBC; 20 parameters + 3 color histograms (WBC/RBC/PLT)

  • Sample Consumption

    Venous mode: 9.6μL, Capillary mode: 9.6μL, Pre-diluted mode: 20μL

  • Working Mode

    Double passages counting detection+independent HGB measurement system; 24 hours with auto standby

  • Operation Mode

    USB keyboard & mouse (PE-6000Plus: Touch screen)

  • Throughput

    ≥60 samples/hour

  • Storage

    50,000 sample results inclusive of the histograms

  • QC Mode

    L-J QC mode

  • Cross Contamination Ratio

    WBC/RBC/HGB﹤0.5%, PLT﹤1%

  • Performance
    Parameter Repeatability (CV%) Linear Range
    WBC≤2.5% 0.00-99.9×109/L
    RBC≤2.0% 0.00-99.9×1012/L
    HGB≤1.5% 0-300g/L
    MCV≤0.4% 40-150fL
    PLT≤5.0% 0-999×109/L
  • Display

    10.4” LCD, resolution: 800×600

  • Reference Value

    Baby, Kid, Woman, Man, Normal and Customization

  • Interface

    4×USB, 1×ethernet, 1×VGA (for external monitor)

  • Printer

    Built-in thermal recorder, optional external printer, eight report formats

  • Environment Requirement

    Temperature: 15℃~35℃; Humidity: 10%-90%
