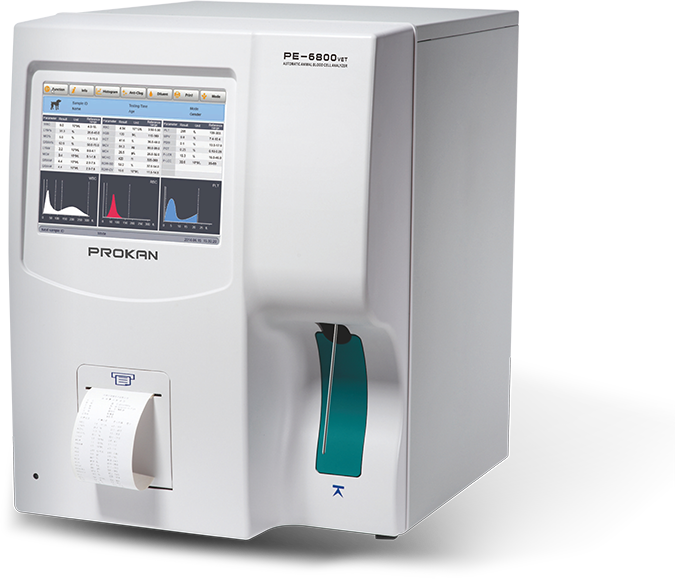

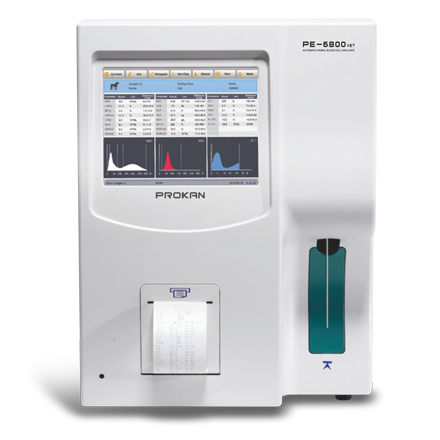

PE-6800VET
Fully Auto Hematology Analyzer
PE-6800VET
  • Automated & User-friendly Interface
  • Accurate Results & Low Sample Consumption
  • Easy Maintenance & Environment-friendly System
  • Perfect QC System
  • 20

    Parameters

  • 3

    Histogram

  • 7+

    Animals

Advanced Technology




Specifications
  • Methodology:

    Electrical resistance for countingcyanide free method for hemoglobin

  • Parameter:
    3-part differential of WBC; 20 parameters (WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR) + 3 color histograms (WBC/RBC/PLT)
  • Sample volume:

    Venous Mode: 9.6μL; Pre-diluted Mode: 20

  • Operation mode:

    Touch screen operationalso support USB keyboard & mouseBased on Linux system

  • Throughput:

    30 samples/hour, 24 hours work with auto standby

  • Storage:

    50000 sample results inclusive of the histograms

  • Species of animals

    12 Species: Dog/ Cat/ Horse/ Cow/ Sheep/ Monkey/ Mice/ Pig/ Rabbit/ Gallus/ Duck/ Goose ; 5 User-defined species

  • Calibration mode:

    Manual calibration and auto calibration

  • Display

    8" LCDresolution :800x600

  • Language:

    Multi-Ianguage supported, user can on-line switch system language

  • Interface: Work

    4 xUSB, 1xRS232, 1 x ethernet, 1 xVGA (for external monitor)

  • Power supply:

    AC100-240V 50/60HZ
